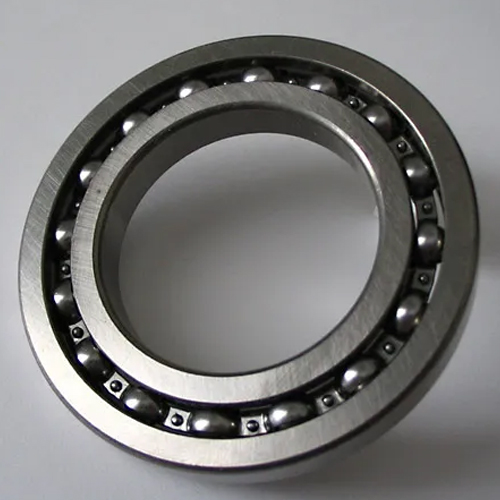

Structure and Function:
Races (Rings):
Two grooved rings provide a track for the balls to roll on.
Balls:
Spherical balls, typically made of steel or ceramic, reduce friction by rolling between the races.
Cage:
A separator that keeps the balls evenly spaced and prevents them from clumping together.
How it Works:
The rolling action of the balls significantly reduces friction compared to sliding contact, leading to smoother rotation and reduced wear.
Types of Ball Bearings:
Deep Groove Ball Bearing:
Versatile, suitable for both radial and axial loads, commonly used in various applications.
Angular Contact Ball Bearing:
Designed for heavier axial loads and can also handle radial loads, often used in high-speed applications.
Self-Aligning Ball Bearing:
Allows for some misalignment between the shaft and housing, useful when precise alignment is difficult to achieve.
Benefits of Ball Bearings:
Low Friction: Reduces energy loss and wear on moving parts.
High Speed: Suitable for applications requiring high rotational speeds.
Reliability: Proven in numerous applications and can provide long service life.
Low Noise and Vibration: Optimized for smooth operation and reduced noise.
Applications:
Automotive: Used in wheels, engines, and other components.
Industrial Machinery: Found in conveyors, pumps, and other equipment.
Consumer Products: Used in appliances, tools, and other everyday items.
Aerospace: Used in aircraft engines and other systems.
